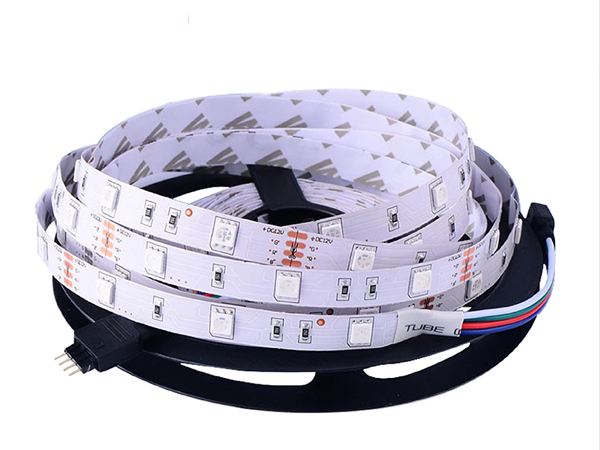

5050 High gloss white soft light strip

[Fuyunda Lighting Product Description]

[Product Model]: FYD-5050-RGB-60D-12V

[Luminous color]: RGB

[LED quantity]: 60 lights/meter

[External dimensions]: 1000mm x 6mm

[Light source lifespan]: ＞ 50000 hours

【 Packaging 】: 5 meters per roll, anti-static bag with hot melt sealing packaging

[Waterproof level]: Bare board

[Working temperature]: -20 ℃~50 ℃

Working voltage: DC12V ± 5%

Working current: 65-75mA/M

Power: 28.8w/M

[Luminous flux]: 2000-2600lm/M

Luminescent angle: 120 degrees

Introduction to Fuyunda Lighting Strip

1. Fuyunda lighting strip adopts high-quality chips, with high brightness, large angle, excellent quality, and stable performance of the light source. Tested in an environment with a temperature of 25 ℃, humidity of 65%, and current of 20mA: the average light attenuation of Qicai 2500 hours does not exceed 2%, and the average color temperature drift does not exceed 3%.

2. The light strip is composed of three LEDs in a series circuit, which can be cut between each unit along the position indicated by the cutting line on the PCB according to the length requirements.

3. The substrate is made of soft PCB board, which has high flexibility and can be bent freely. It is suitable for installation in uneven and narrow areas, especially suitable for surface decoration of circular/irregular designs.

4. Rich and colorful colors, available in red/green/blue/yellow/purple/white/warm white/RGB seven color options.

5. The product is divided into indoor non waterproof bare boards and outdoor/outdoor waterproof light strips. The waterproof level includes IP65 (surface drip glue), IP67 (silicone sleeve), and IP68 (U-shaped pipe drip glue).

6. The light strip can be wired on one or both sides, with a length of 10CM; The connection method and wiring length can be made according to the customer's requirements.

5 meters per roll of disc packaging. Our company's LED light strips are all packaged in anti-static bags and sealed with hot melt to completely block air circulation.

[Installation instructions and precautions for Fuyunda lighting strips]

1. This product is a constant current low-voltage component (DC12V). Please connect to the corresponding low-voltage power supply or purchase a transformer switch power supply to avoid damaging the light strip due to strong voltage impact.

2. During installation, simply peel off the genuine 3M double-sided adhesive on the back of the product and stick it to the place of use, which is convenient and reliable.

3. During installation, efforts should be made to avoid LED beads and resistors being located exactly at the bend of the light strip, so as not to cause detachment of the beads and resistors, resulting in some beads not being able to light up.

When matching a transformer power supply, it is important to understand the maximum current that the circuit board can withstand, and then consider how to install it in series or parallel. When in regular use, it is recommended to connect in parallel; When used in series, the connection length should not exceed 5 meters to avoid insufficient voltage and insufficient brightness of the light strip.

[Applicable scope of Fuyunda lighting strip]

1. Ultra thin lightboxes, lighting signs, advertising signs, etc.

2. Indoor commercial atmosphere lighting for mid to high end specialty stores, shopping malls, and light source lighting for display cabinets/jewelry stores/handicrafts.

3. Decorations of irregular design bodies (such as polygonal walls and water droplet ceiling grooves in hotels/nightclubs/KTVs, etc.).

4. Atmosphere lighting in leisure places such as bars and cafes.

5. Home concealed groove edging (suspended ceiling, door frame, wine cabinet, wardrobe, TV cabinet...).

6. Car beauty, etc.
